Air driven pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a safety power source for a variety of corrosive liquid , large particle size liquid , high viscosity liquid, volatile, flammable, poisonous liquid can be pumped optical exhaustion . BSK has 4 series pumps: standard pumps, high pressure pumps, powder pumps, FDA&3A pumps. The different wet parts can be used for different applications. With the advanced air distribution system and stable working performance, BSK pumps are famous in chemical, ceramic, oil&gas, food&pharmacy, mining, water treatment, lithium battery production, building construction etc.

Request Information
Learn More

DESCRIZIONE

Pump Size BQG 220/0.1 BQG 410/0.1 BQG 490/0.1
Working air pressure 0.10-0.83Mpa 0.10-0.83Mpa 0.10-0.83Mpa
Max. Outlet pressure 0.83Mpa 0.83Mpa 0.83Mpa
Max. Flow rate 378.5lpm 667lpm 903lpm
Max. Particle size 6mm 6.2mm 5.3mm
Max. Dry suction 6.7m 80 80
Noise level @70psi 75 dB 75 dB 75 dB
Weight:(aluminum) 18kg 24.5kg 42kg

Performance Curve

BQG 220/0.1

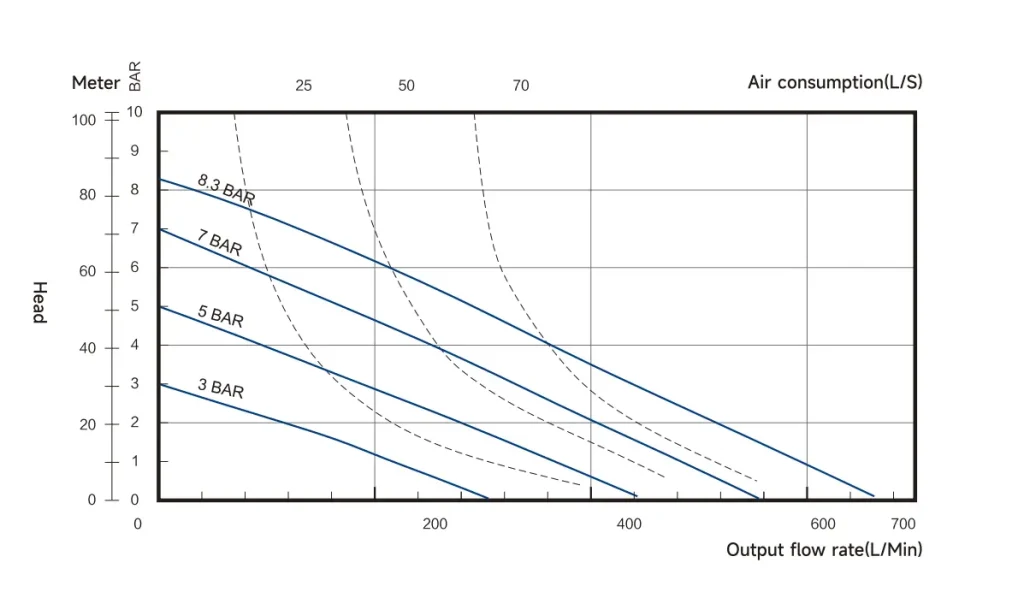

BQG 410/0.1

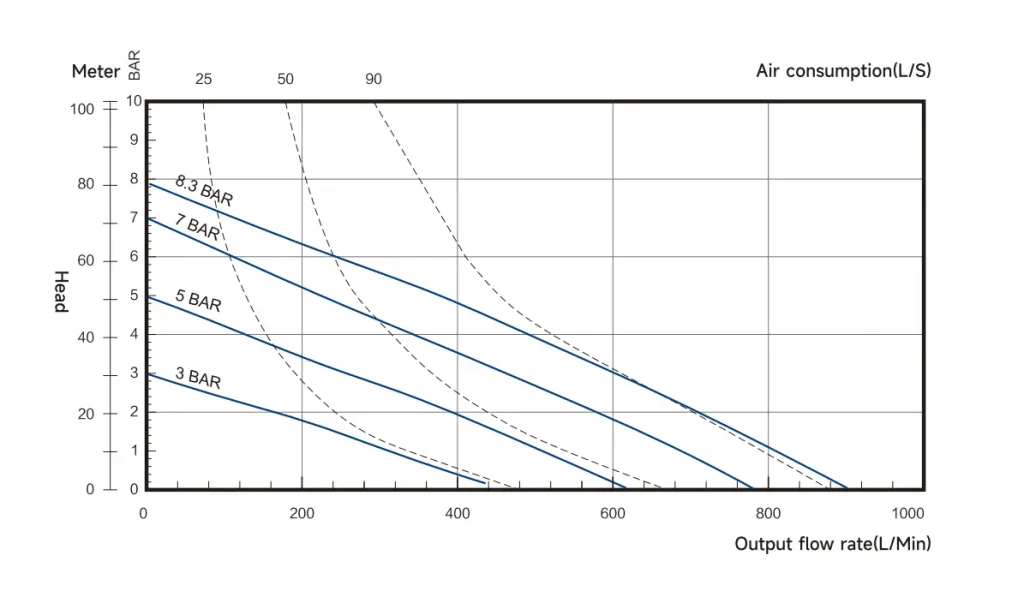

BQG 490/0.1

Find the Professional fluid transportation Solution that's right for you

Contact Us

Solution

As a professional air diaphragm pump manufacturer, BSK has been committed to research and development, manufacturing, and performance improvement. Provides reasonable solutions for different applications.

Example in mining:

Draining at working face
Guniting for gallery wall

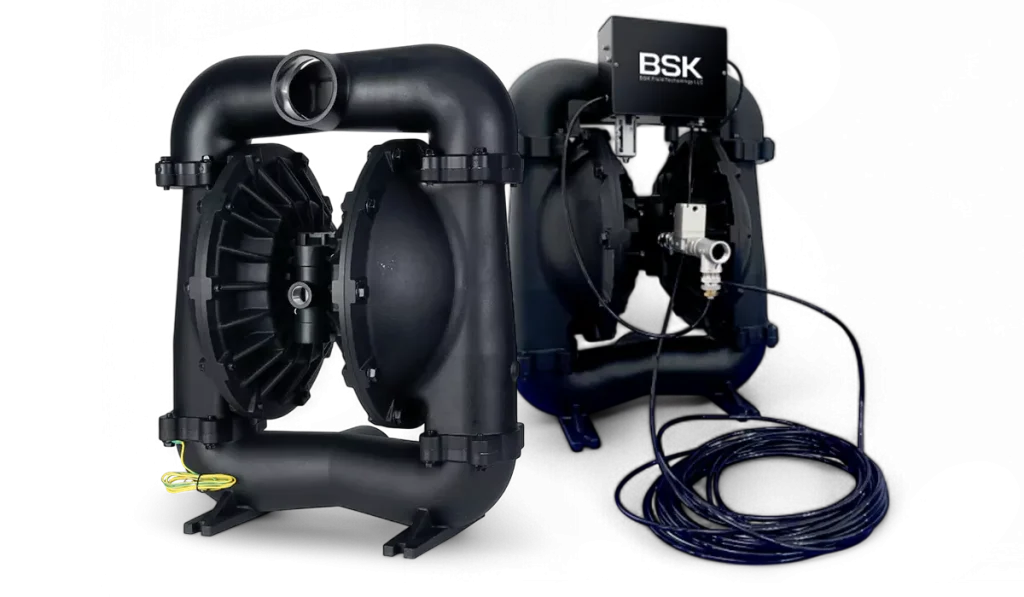

Pump Parts

Characteristics

Security

  • Air motor driving, avoid electric spark generated
  • Less heat generated during pump operation, suitable for flammable and explosive gas environment
  • Conveyable for muddy water
  • Capable for dry run

Reliability

  • Classic air distribution system
  • Strength structure, good sealing, high suction lift

Efficiency

  • Module structure air motor, easy maintenance
  • Less air consumption

Portability

  • The lightest weight in AODD pump industry.

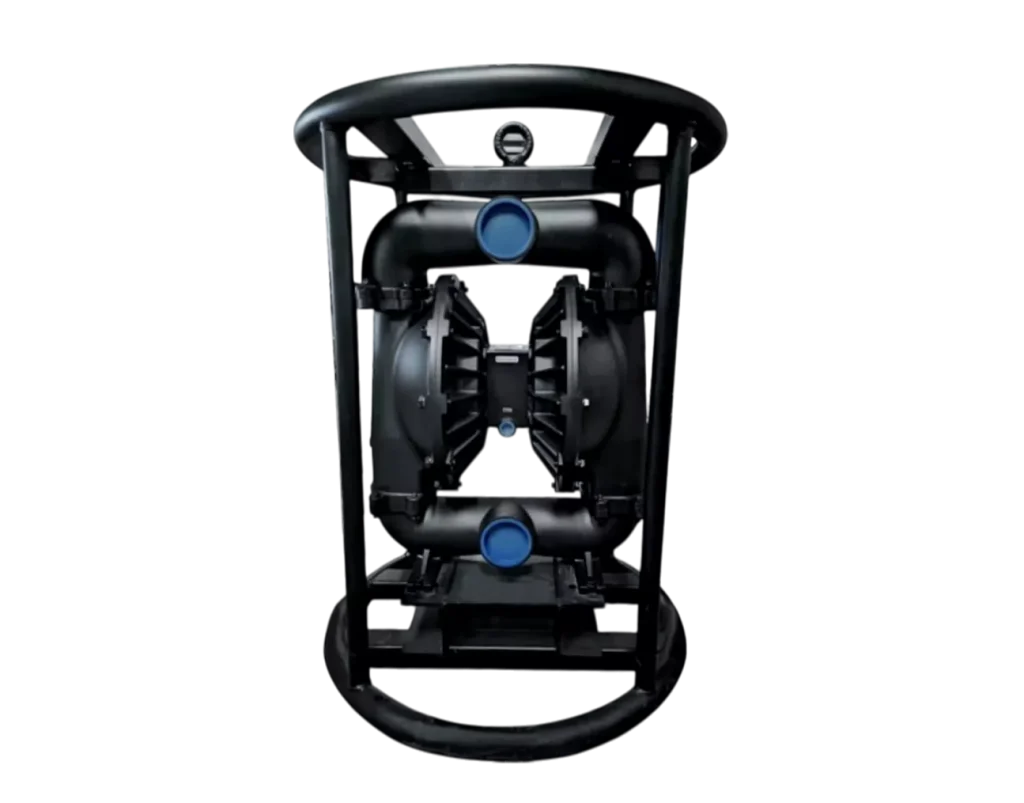

  • Rolling cage, easy to move

Service kit

Quick connector liquid filter
Remark: in addition to the service kit
Customized services is also possible

  • 1.Inlet filter
  • 2.Adaptor for inlet and outlet(Thread to Pagoda)
  • 3.Adaptor(air supply)

Other options for mining

2:1 high pressure pneumatic diaphragm pump

Special design for high head applications
Doublehead
Large flow rate

Example in mining:

Size Model Max.flow rate(lpm) Max.head
1.5’’ HA40AL-P991-A 378.5 Double head
2’’ HA50AL-D991-A 667
3’’ HA80AL-D991-A 903

Automatic liquid level control device

Utilizes the industry-leading pneumatic liquid level detection principle. The pump can be controlled to operate within the specified liquid level range, avoiding dry run, achieving unmanned monitoring, saving air consumption, and reducing usage cost.

Typical Applications

Automatic control of liquid level in underground puddle.

Reliable

  • Long life design, resistant to harsh underground environments Efficient
  • Avoiding dry run of diaphragm pumps, more energy saving
  • Fully pneumatic structure, without any electrical components Convenient
  • Weighting only 2 kilograms(excluding fluorine)
  • Can be easily installed on BSK mining pumps

Application

Application Industry

paint and coating

Mining

oil and gas

Pulp and Paper

Food and Pharmaceuticals

Water and waste water Solution

QUALITY

Quality Assurance & Certifications

AB Certifications 01
AB Certifications 02
AB Certifications 03
AB Certifications 04
AB Certifications 08
AB Certifications 05
AB Certifications 12
AB Certifications 06
AB Certifications 07
AB Certifications 09
AB Certifications 10
AB Certifications 11

Simplified Structure

The main valve and air motor are in the modular structure; Easy to disassemble and maintain; As required in the American technology standard, its spare parts are coated with stoving varish, being beautiful and practical, anti-corrosive and easy to clean.

Energy Conservation and Noise Reduction

With built-in vacuum pump chamber, it is anti-icing; It effectively reduces the discharge pressure and noise from work; With ultra-low-pressure start-up capability, it can start at air pressure of 1.5kG or less.

Technical Characteristics

  • 1.unique patented technology
  • 2.nanny service
  • 3.high quality
  • 4.wide applicable

Maintenance-Free

Self-lubricating dual polymer ceramic system operates smoothly with zero dead zones. Simplified structure enables quick maintenance. Dual-seal redundancy and wear resistance guarantee long-term reliability.

Simplicity

It is maintenance-free due to the installation of high-strength engineering plastic components; The use of less consumable parts facilitates replacement; The lightweight design of pump is convenient for its movement.

Stability

The dual reversing system can assure working stability while maximizing efficiency in addition to extremely optimizing air channel.

New Patented Main Valve

Dual-seal design eliminates leakage: an inbuilt diaphragm seal paired with bolt-connected secondary protection. Optimized chamber and stepless valve prevent pump damage while maximizing flow. Reduced wear parts ensure durability.

Inoxidizability

The anti-oxidated non-toxic treatment is given to the metal; With enhanced abrasion resistance, it is free of rust and pollution; It is not affected by temperature variation.

Resistance to Soiling

The use of polymer ceramic dynamic seal makes it more wear-resisting and enables it to prevent and discharge pollution; It is applicable to the harsh environment of air source.
