As a key filler in coatings, plastics, papermaking, and building materials, calcium carbonate is often used as high-concentration slurries (30%-60% solid content) in production. These slurries have high viscosity, hard particles, and easy sedimentation, demanding strong wear resistance, anti-clogging, and stability from conveying equipment. Traditional centrifugal/gear pumps frequently suffer wear, clogging, and leakage, harming efficiency. BSK pneumatic diaphragm pumps, with targeted design, have become the preferred solution—proven stable in multiple enterprises, boosting conveying efficiency and production continuity.
Core Pain Points in Calcium Carbonate Slurry Conveying
Slurry conveying faces three key challenges traditional equipment can’t resolve:
High solid-content clogging: Calcium carbonate (Mohs hardness 3-4) clogs centrifugal pump impellers/gear pump tooth grooves, requiring 2-3 weekly disassembly cleanups, slowing production significantly.
Severe equipment wear: Hard particles scour pump channels and seals. Traditional metal pumps wear severely in 3-6 months, with monthly seal replacements driving high maintenance costs.
Sedimentation-induced interruptions: Slurry settles easily; traditional pumps have weak self-priming, needing re-priming and sediment cleaning after shutdowns—wasting time, slurry, and destabilizing product batches.

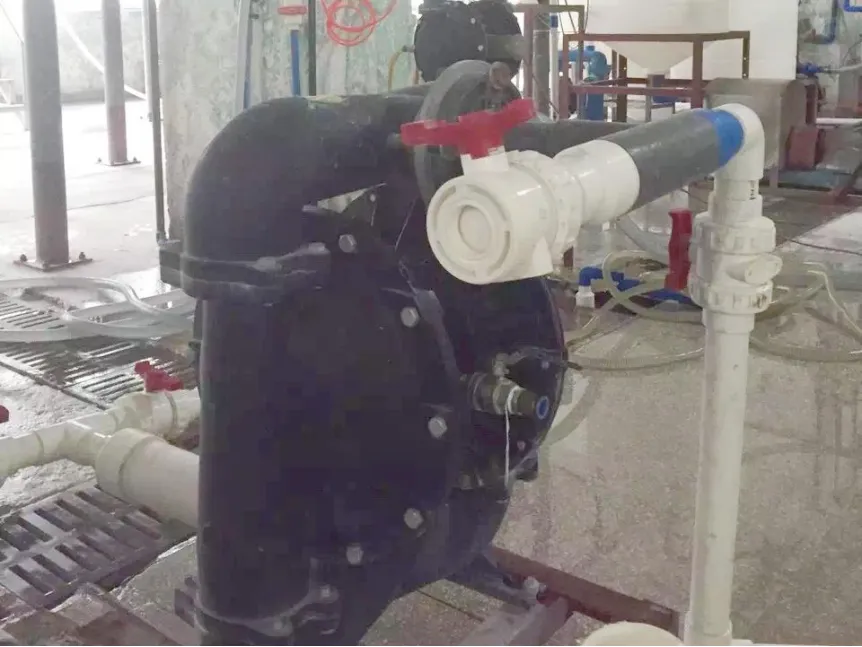

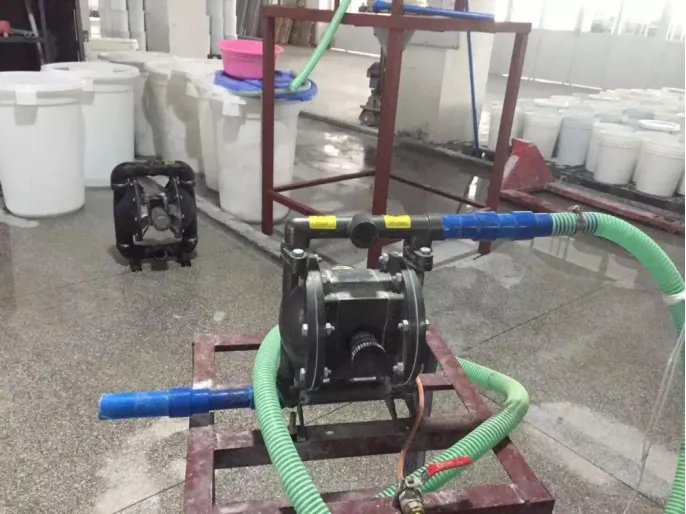

Targeted Solutions by BSK Pneumatic Diaphragm Pumps
Tailored to slurry traits, BSK optimized its pneumatic diaphragm pumps to solve challenges via material, structure, and performance upgrades:
Wear-Resistant Materials for Hard Particles
Key contact parts (flow channels, valve balls, diaphragms) use wear-resistant materials: 316 stainless steel/wear-resistant cast iron (resisting scouring), PU/PTFE diaphragms (elastic and durable), and ceramic/hardened stainless steel valve balls. Service life is 3-5x longer than traditional pumps, cutting part replacement costs.
Large-Channel Design to Prevent Clogging & Sedimentation
With 1″-3″ large-diameter channels (max 25mm), BSK pumps fit 0.1-5mm calcium carbonate particles, avoiding jams. Pneumatic reciprocation enables pulsed conveying to agitate slurry and prevent sedimentation. Its 6m max dry suction lift allows quick startup even after slurry settling—no manual cleaning/priming.
Seal-Free Structure & Dry-Run Capability for Stability
The “diaphragm isolation + no mechanical seal” design fully separates slurry from drive parts, eliminating leakage from seal wear. The pump supports long-term dry operation—no damage if slurry supply is interrupted or the chamber runs dry, solving traditional pumps’ burnout risk and ensuring continuity.
Flexible Adjustment for Multi-Scenario Needs
Adjusting compressed air pressure (0.2-0.8MPa) controls flow (5-500L/min) to match grinding, mixing, or molding needs. No extra speed-control equipment is required, enabling quick process adaptation and avoiding quality issues from flow fluctuations.
Practical Application: A Coating Enterprise’s Transformation
A large coating firm long faced slurry conveying issues: traditional centrifugal pumps needed monthly impeller replacements, shut down twice weekly for 2+ hours each, and leaks caused waste and pollution. After adopting BSK BA50 pumps:
Stable operation: No wear or clogging in 6 months of continuous use; production downtime dropped 90%.
Lower maintenance: Seal/wearing part replacements fell from monthly to bi-annually, cutting costs 70% and saving ~50,000 yuan/year in cleaning labor.
Consistent quality: Pulsed conveying reduced slurry concentration fluctuations, improving coating whiteness/hiding power stability and boosting qualification rates by 3%.
Wide Adaptability in the Calcium Carbonate Industry
Beyond coatings, BSK pumps serve other sectors:
Plastics: Conveying high-concentration slurry to extruders for calcium carbonate-filled masterbatches.
Papermaking: Delivering coating slurry for uniform paper coating.
Building materials: Transferring calcium carbonate mortar for tiles/putty, adapting to intermittent feeding.
Whether for high-solid-content, high-viscosity slurry or coarse-particle sedimentary materials, BSK pumps solve traditional equipment pain points with wear resistance, anti-clogging, and stability. Their non-electric design suits explosion-proof scenarios (e.g., coatings, chemicals), expanding application scope.
For calcium carbonate enterprises, BSK pneumatic diaphragm pumps are more than equipment upgrades—they boost efficiency, cut costs, and ensure quality. For customized solutions, contact the BSK technical team.
