Fluid Handling in PCB & Semiconductor Wafer Processes: Precision, Reliability, and Compliance

The Critical Role of Fluid Management in Electronics Manufacturing

PCB manufacturing and semiconductor wafer processing demand exceptionally precise and reliable fluid handling solutions. From removing flux residues during PCB cleaning to managing abrasive slurries and high-purity chemicals in wafer processes, even minor inconsistencies can lead to defects. Diaphragm pump technology has emerged as a preferred solution, addressing critical challenges such as chemical corrosion, particulate clogging, and continuous operation requirements in custom equipment configurations.

Diaphragm Pump Technology: Advantages for Precision Electronics

Compared to centrifugal, gear, or peristaltic pump alternatives, air-operated diaphragm pumps offer distinct advantages for electronics manufacturing applications. Their sealless design eliminates leakage points entirely, preventing both contamination and fluid loss. The dry-run capability provides crucial protection against pump damage during low-fluid conditions, while self-priming capabilities ensure reliable operation with various fluid viscosities.

These pumps handle abrasive slurries and particulate-laden fluids that would quickly damage other pump technologies. The adjustable flow rates allow precise process control, and pneumatic operation eliminates spark risks in potentially explosive environments. Maintenance simplicity stands in stark contrast to complex mechanical seal replacements required in other pump types.

Integration into PCB Cleaning and Wafer Processing

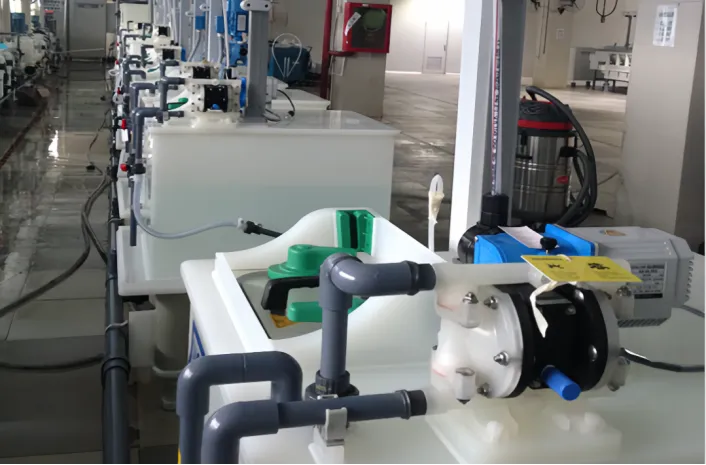

In PCB cleaning lines, diaphragm pumps provide reliable fluid transfer in alkali cleaning and pickling stages, circulate browning solutions for uniform surface preparation, and safely discharge waste fluids containing flux residues and metal particles. They support both intermittent supply and continuous circulation modes, automatically responding to level sensors to maintain process continuity.

For semiconductor wafer processing, these pumps serve critical roles in grinding, polishing, and cleaning applications. Their contamination-free operation and material compatibility maintain fluid purity essential for consistent wafer quality. The ability to handle both chemical solutions and abrasive slurries makes them ideal for multiple process stages.

Driving Efficiency and Compliance in High-Tech Manufacturing

Modern diaphragm pump solutions significantly reduce downtime caused by clogging and corrosion, simplify maintenance procedures, and integrate seamlessly into automated systems. This results in lower operating costs, improved product quality, and simplified regulatory compliance.

Explore Advanced Pumping Solutions with BSK

While diaphragm pump technology offers inherent advantages for electronics manufacturing, BSK’s engineered solutions deliver enhanced performance through specialized materials and design innovations. Our air-operated diaphragm pumps incorporate industry-leading features developed specifically for PCB and semiconductor applications.

Discover the BSK Difference

Experience the reliability of precision-engineered pumping solutions designed for the most demanding electronics manufacturing environments. Contact us today to learn how BSK’s advanced diaphragm pump technology can optimize your fluid handling processes and enhance production quality.
