Fluid Handling in Component Manufacturing

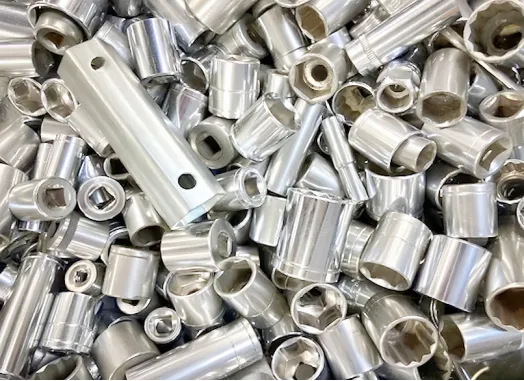

Component manufacturing relies on seamless fluid management to avoid downtime—from swarf-clogged coolants to mixing cutting fluids, die-cast release agents, and recycling solvents. Pneumatic diaphragm pumps meet these needs with industry-leading performance, integrating into automated systems to boost efficiency.
Key Challenges in Production
Critical hurdles include coolant systems fouled by metal swarf (chips) clogging traditional pumps, causing delays; abrasive slurries wearing equipment, raising maintenance costs; and needing stable concentration control for machining/die-cast quality. Solvent waste also demands efficient recycling to cut costs and reduce environmental impact.
Pneumatic Diaphragm Pump: Engineered for the Industry
BSK Pneumatic Diaphragm Pump solve these challenges with purpose-built features. Their impeller-free design resists clogs with 8mm metal chips, preventing stoppages. A world-patented dual-ceramic gas valve offers wear/dirt resistance and lubrication-free operation, avoiding downtime from dirty air. Card slot-sealed gas caps/diaphragms reduce leaks while withstanding high pressure.
A modular centrosome boosts efficiency, with universal parts and tool-free disassembly cutting maintenance time. Material versatility suits diverse fluids: aluminum-Santoprene for weak acids/alkalis; PP, 316# stainless steel, or PVDF for corrosives/solvents. Imported European wear parts extend lifespan in harsh environments.
BSK pneumatic diaphragm pumps excel in two key systems:

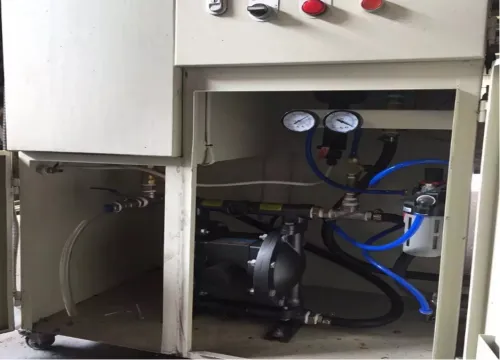

- Precision mixing: They integrate with water sources, valves, and tanks to enable uniform mixing via siphon effects, maintaining stable concentrations for cutting fluids and release agents.

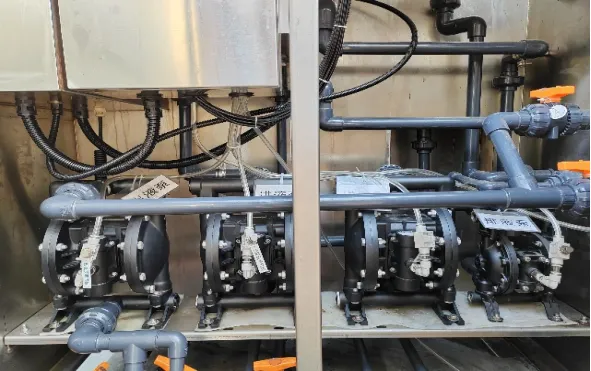

- Solvent recovery: Pumps transport filtered waste solvent to recycling machines. Post-distillation/cooling, they transfer purified solvent back to workstations, regenerating waste for reuse—cutting costs and pollution.
Optimize Production with BSK
BSK pneumatic diaphragm pumps reduce downtime, lower maintenance costs, and deliver precise control across coolants, mixed fluids, and solvent recycling.
Ready to eliminate pump-related downtime and reduce your operating costs? Contact our engineering team today to find the perfect pneumatic diaphragm pump for your facility.
Explore BSK Pneumatic Diaphragm Pumps
Looking for the right AODD pump for your application? BSK Fluid Technology offers a complete range of pneumatic diaphragm pumps in aluminum, stainless steel, cast iron, PP, and PVDF. With 30+ years of manufacturing expertise and patented ceramic air valve technology, we deliver reliable fluid transfer solutions worldwide.
Frequently Asked Questions
When should I choose PTFE vs Santoprene diaphragms?
Choose PTFE for strong acids, aggressive solvents, high-purity or temperatures above 80°C (shorter flex life, higher cost). Choose Santoprene for mildly corrosive/neutral fluids, longer diaphragm life (2-3x vs PTFE), food-grade use and cost efficiency.
Can BSK pumps handle food-grade and sanitary applications?
Yes. BSK sanitary AODD pumps feature a 316L body with electropolished finish (Ra ≤ 0.8 μm), tri-clamp connections for CIP, FDA-compliant diaphragms, and no dead legs for complete drainage. They are used in dairy, beverages, sauces, edible oils and chocolate transfer.
Are BSK pumps suitable for explosive / ATEX environments?
Yes. AODD pumps are powered by compressed air with no electricity, making them inherently safe for ATEX Zone 1/2 (gas) and Zone 21/22 (dust). For ATEX compliance use a conductive grounded metallic body or PTFE diaphragms with conductive additive for plastic bodies, and route the air exhaust to a safe area.
Why choose an AODD pump instead of a centrifugal pump?
AODD pumps excel with high-viscosity fluids (up to 10,000 cP), abrasive slurries and shear-sensitive liquids. They run dry without damage, are self-priming, handle solids up to 6mm, and are safe for explosive environments with no electricity. Centrifugal pumps suit very high flow (>1000 L/min) or high pressure (>10 bar).
Where can I get a quote for the right AODD pump for my application?
BSK Fluid Technology engineers provide a personalized pump selection within 24 hours. Share your fluid properties, flow rate and pressure requirements via the Contact page or WhatsApp +86-134-3105-8937, and we will recommend the optimal model from our aluminum, stainless steel, cast iron, PP and PVDF AODD range.
