The pneumatic diaphragm pump is a new type of conveying equipment and one of the most innovative pumps currently available. It utilizes compressed gas as a safe power source and is suitable for conveying various corrosive liquids, liquids containing large particles, and high-viscosity liquids…
Pneumatic diaphragm pumps are a new type of conveying equipment and one of the most innovative pumps available today. Using compressed gas as a safe power source, they can convey various corrosive liquids, liquids containing large particles, high-viscosity liquids, volatile, flammable, toxic liquids, and optically destructive liquids. BSK offers four main series of pumps: standard pumps, high-pressure pumps, powder pumps, FDA-certified pumps, and 3A-certified pumps. Multiple wet-end options are available to meet diverse application needs. With its advanced air distribution system and stable performance, BSK pumps enjoy a high reputation in industries such as chemical, ceramics, oil and gas, food and pharmaceutical, mining, water treatment, lithium battery production, and construction.

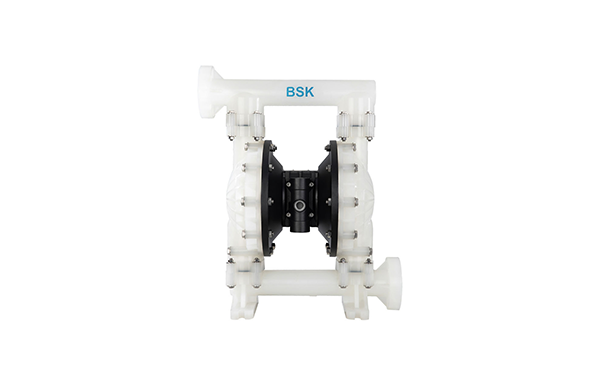

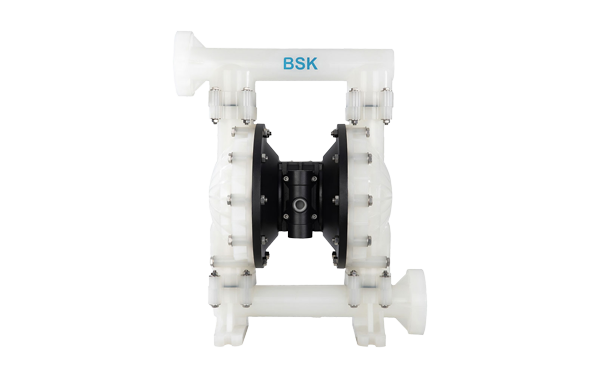

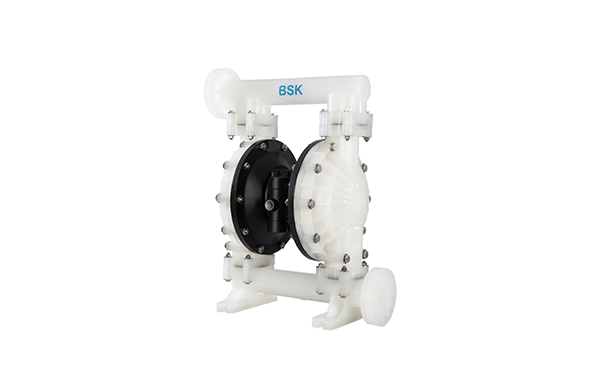

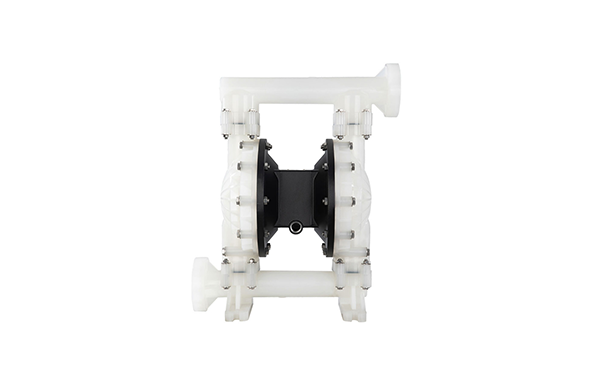

The BSK series PP & PVDF pumps are available in diameters of 1/4 inch, 1/2 inch, 1 inch, 1 1/2 inch, 2 inch, and 3 inch, and can be equipped with either an aluminum alloy or polypropylene center housing. Our high-purity polypropylene and polyvinylidene fluoride materials offer excellent corrosion resistance when conveying highly corrosive liquids.
| Pump Size | BP06PP&PV | BP15PP&PV | BA25/BP25PP&PV | BA40PP&PV | BA50/CP50PP&PV | BA80/CP80PP |
| Process Connection Size | 1/4 inch | 1/2 inch | 1 inch | 1 1/2 inch | 2 inch | 3 inch |
| Allowable Air Pressure (bar) | 0.09-0.60 MPa | 0.15-0.69 MPa | 0.1-0.83 MPa | 0.1-0.83 MPa | 0.1-0.83 MPa | 0.1-0.83 MPa |
| Max Flow Rate (L/min) | 26.1 | 45.3 | 192 | 378.5 | 667 | 903 |
| Displacement per Cycle (L) | 0.06 | 0.14 | 0.87 | 2.83 | 3.78 | 7.67 |
| Max Delivery Pressure (m) | 60 | 70 | 60 | 80 | 80 | 80 |
| Max Dry Suction Height (m) | 4.2 | 4.1 | 6.7 | 6.7 | 6.2 | 5.3 |
| Max Particle Size (mm) | 1 | 2.5 | 3 | 6 | 7 | 9 |
| Weight (kg) | 1.3 | 2.4 | 9.5 | 19 | 26 | 54 |

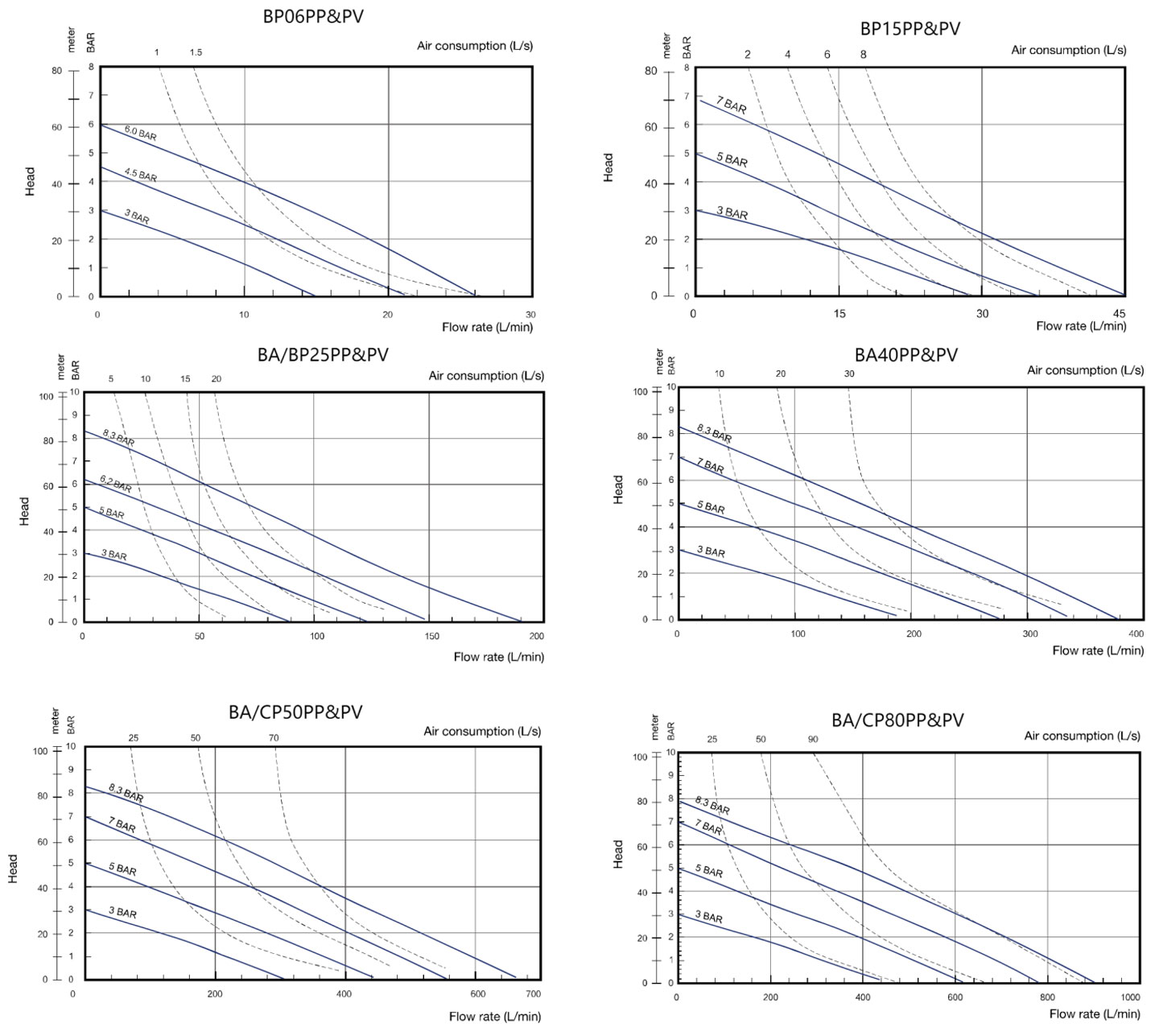

Performance curve
Choose a diaphragm
Excellent √Good! Satisfactory X Poor
| Diaphragm Material | Expected Life | Abrasion Resistance | Chemical Compatibility | Heat Resistance | Temperature (Min) | Temperature (Max) |
|---|---|---|---|---|---|---|
| PTFE | + | + | + | + | 40°F/4.4°C | 220°F/104°C |
| Santoprene | + | + | √ | √ | -40°F/-40°C | 225°F/107.2°C |
| Hytrel | + | + | √ | √ | 32°F/0°C | 175°F/79.4°C |
| Viton | X | ! | + | + | -40°F/-40°C | 350°F/176.6°C |
| Buna-N | + | √ | ! | ! | 10°F/-12.0°C | 180°F/82°C |
