The pneumatic diaphragm pump is a new type of conveying equipment and one of the most innovative pumps currently available. It utilizes compressed gas as a safe power source and is suitable for conveying various corrosive liquids, liquids containing large particles, and high-viscosity liquids…
The dynamic diaphragm pump is a new type of conveying equipment and one of the most innovative pumps currently available. It uses compressed gas as a safe power source and can transport a variety of corrosive liquids, liquids containing large particles, high-viscosity liquids, volatile, flammable, toxic liquids, and optically destructive liquids. BSK offers four main series of pumps: standard pumps, high-pressure pumps, powder pumps, FDA-certified pumps, and 3A-certified pumps. Multiple wet-end options are available to meet diverse application needs. With its advanced air distribution system and stable performance, BSK pumps enjoy a high reputation in industries such as chemical, ceramics, oil and gas, food and pharmaceutical, mining, water treatment, lithium battery production, and construction.

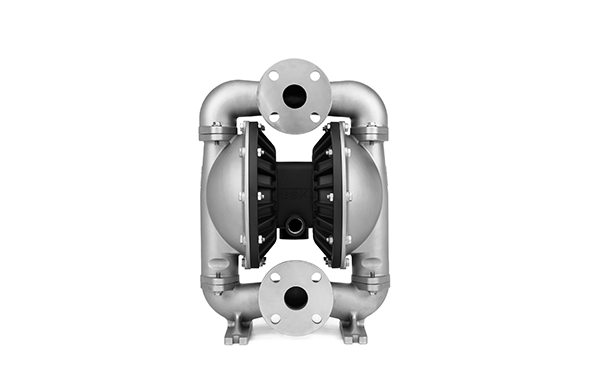

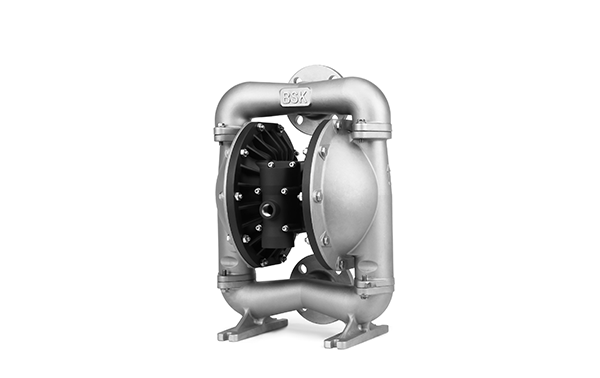

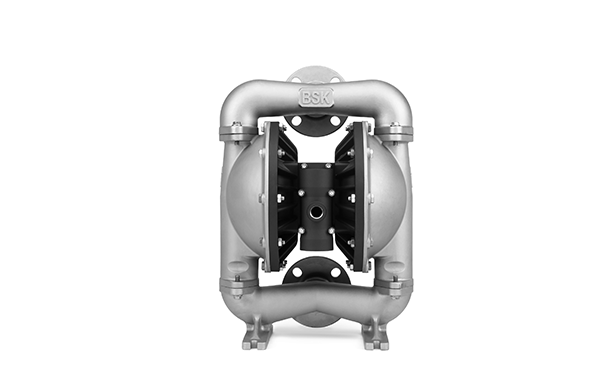

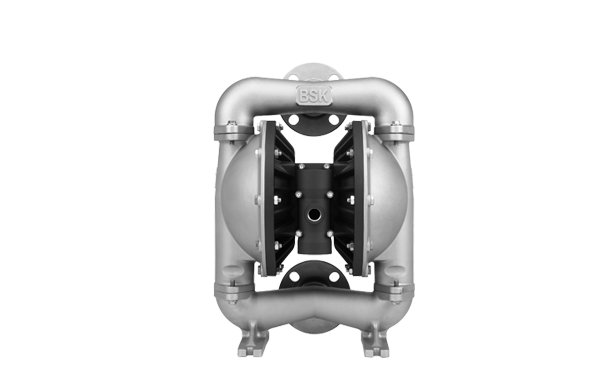

The BSK CA series pneumatic diaphragm pumps are available in 2-inch and 3-inch wet-end sizes, with materials including PTFE, Santoprene, Hytrel, NBR, or Viton. These pumps can be used to transport industrial wastewater, coolants, construction slurries, and non-corrosive chemicals.
| Pump Size | CA50AI | CA50CI | CP50SS | CA80AL | CA80CI | CA80SS |
| Process Connection Size | 2 inch | 2 inch | 2 inch | 3 inch | 3 inch | 3 inch |
| Wetted Material | Aluminum | Cast Iron | Stainless Steel | Aluminum | Cast Iron | Stainless Steel |
| Center Body Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Max Pressure (psi) | 8.3 | 8.3 | 8.3 | 8.3 | 8.3 | 8.3 |
| Max Flow Rate (L/min) | 667 | 667 | 667 | 903 | 903 | 903 |
| Max Dry Suction Height (m) | 6.2 | 6.2 | 6.2 | 5.3 | 5.3 | 5.3 |
| Volume per Cycle (L) | 3.78 | 3.78 | 3.78 | 7.67 | 7.67 | 7.67 |
| Max Particle Size (mm) | 7.0 | 7.0 | 7.0 | 9.0 | 9.0 | 9.0 |
| Noise Level @ 70 psi | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB |
| Weight (kg) | 24.5 | 48.5 | 53 | 42 | 91 | 95 |
Choose a diaphragm
Excellent √Good! Satisfactory X Poor
| Diaphragm Material | Expected Life | Abrasion Resistance | Chemical Compatibility | Heat Resistance | Temperature (Min) | Temperature (Max) |
|---|---|---|---|---|---|---|
| PTFE | + | + | + | + | 40°F/4.4°C | 220°F/104°C |
| Santoprene | + | + | √ | √ | -40°F/-40°C | 225°F/107.2°C |
| Hytrel | + | + | √ | √ | 32°F/0°C | 175°F/79.4°C |
| Viton | X | ! | + | + | -40°F/-40°C | 350°F/176.6°C |
| Buna-N | + | √ | ! | ! | 10°F/-12.0°C | 180°F/82°C |
